Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: OTB-S48

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Get Best Price Contact Now

Detail Information

Mount Type: Wall Mount, Pole Mount Material: ABS Plastic
Port: 12, 24, 32, 48, 72, 96 Port Connector: SC, FC, LC, ST, E2000
High Light:

ftth termination box

,

network termination box

Product Description

Optical Terminal Box 48 Core For FTTX Indoor And Outdoor Use



Optical fiber termination boxes are used for the termination of fiber optic cables both for internal and external use with an adequate grade of IP.



Fiber optic drop cable terminal box is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Fiber optic terminal box is suitable for SC splitters 1:2, 1:4, 1:8, 1:16, 1:32 type and can be loaded with 48pcs of SC simplex adapters. All the components are pre-assembled and easy to be installed together.  And it is a perfect solution for optical fiber installations and management.



Features

Made with plastic material,

Capacity up to 48 fibers.

Available for SC simplex, LC duplex connectors

Lockable door

Provided with a fixing kit and splice tray, cable glands etc.

Easy to install

Provided with accessories for wall installation



Application

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CAT



Specifications

Working Temperature: -40℃~+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)



Model Max. capacity

Dimension

(mm)

Splice tray Splitter Cable entry port Adapter port
OTB-S48 48FO 380*355.8*140.5 2 tray, each 24FO 1pc PLC Splitter 1*8~32 box type 2 cable entry port (without cutting) 48 SC simplex
OTB-S48-A 48FO 380*355.8*140.5 2 tray, each 24FO 1pc PLC Splitter 1*8~32 box type 2 PG cable entry port 48 SC simplex
OTB-S48-B 48FO 380*355.8*140.5 2 tray, each 24FO 1pc PLC Splitter 1*8~32 box type 6 PG cable entry port 48 SC simplex
OTB-S48-C 48FO 380*355.8*140.5 2 tray, each 24FO

4pcs 1*8 plastic splitter cassette

Or 2pcs 1*16 plastic splitter cassette

2 PG cable entry port No



FTTH Optical Fiber Distribution Box / Outdoor Cable Enclosure Box ISO RoHS Listed 0

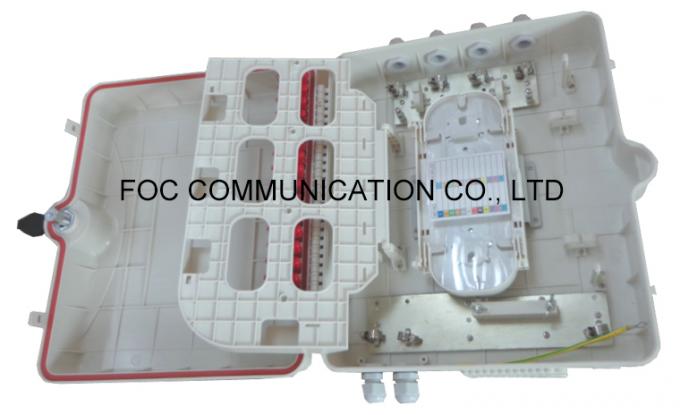

                                   OTB-S48 (2 cable entry port, fiber entry without cutting)

FTTH Optical Fiber Distribution Box / Outdoor Cable Enclosure Box ISO RoHS Listed 1

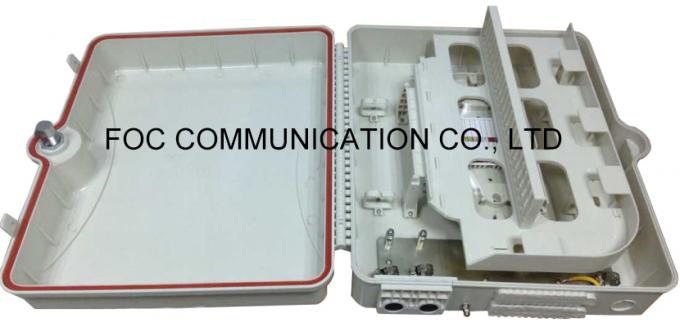

​                                                     OTB-S48-A (2 PG cable entry port)

FTTH Optical Fiber Distribution Box / Outdoor Cable Enclosure Box ISO RoHS Listed 2

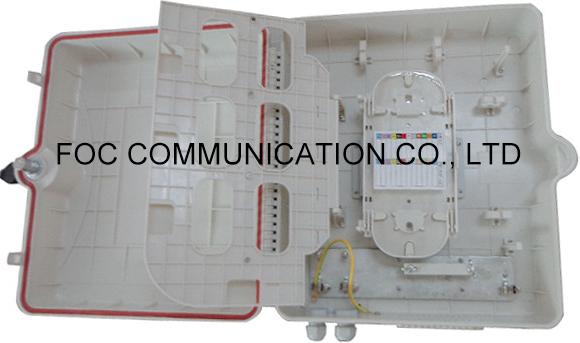

                                                    OTB-S48-B (6 PG cable entry port)

FTTH Optical Fiber Distribution Box / Outdoor Cable Enclosure Box ISO RoHS Listed 3

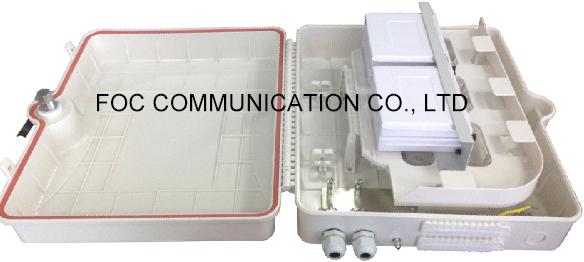

OTB-S48-C (Plastic splitter cassette)



Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box, Fiber Terminal Box, Fiber Distribution Box, Fiber Box
