Waterproof IP65 Cable Termination Box 24 Core Pigtails And Adapters For FTTH

Waterproof IP65 Cable Termination Box 24 Core Pigtails And Adapters For FTTH

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: OTB-0216-E1

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Get Best Price Contact Now

Detail Information

Mount Type: Wall Mount, Pole Mount Material: ABS Plastic
Port: 12, 24, 32, 48, 72, 96 Port Connector: SC, FC, LC, ST, E2000
High Light:

cable termination box

,

network termination box

Product Description

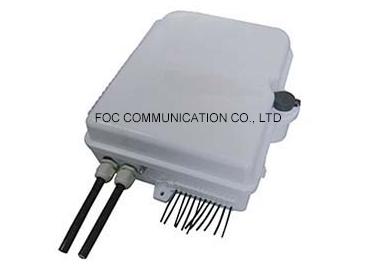

Fiber Terminal Box 24 Core Pigtails and Adapters Pre-loaded For FTTH



FTTX fiber termination box has a multi-layer design that allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter unit and also allows for pigtail splicing of both distribution and drop cables.



FTTX fiber termination box is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic.



FTTX fiber termination Box comes in a compact and easy to use design. This model is applicable for wall-mount, pole mount, Indoor or outdoor rails installation to house fiber termination and splicing.



Features

Different adapter panel, SC, LC, ST, FC ...

24 adapter port

Max. capacity of splice tray is 24 fiber

Max. 1pc PLC 1:16 steel tube type splitter

Waterproof IP65

Wall mounted or pole mounted application





Application

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks, Wide Area Networks



Specifications

Working Temperature: -40℃~+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)



Description OTB-0216-E1
Dimensions(W×D×H) 313.4x274.3x114.1mm
Splice capacity Max. 24 cores
Cable port In: 2-port/Out:24-port
Cable dia. For FTTH drop cable
Color Ivory/White
Main body material Plastic(ABS)
Installation type Wall mounting and pole mounting



Waterproof IP65 Cable Termination Box 24 Core Pigtails And Adapters For FTTH 0

Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box, Fiber Termination Box, Fiber Distribution Box, PLC Splitter Termination Box, Fiber Splitter Box
